Hydraulic Automatic Feeding and Stripped Equipped Compression Moulding Presses

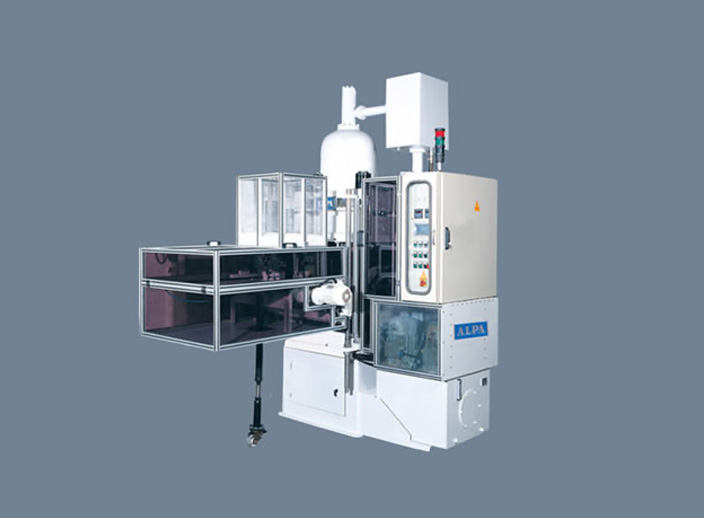

250 Tons Automatic Feeding and Stripped Equipped Compression Moulding Press
A REVOLUTION IN ELECTRICAL CONNECTOR MANUFACTURING
- 24 hour fully automatic operation
- 10 machines controllable by a single worker
- 20.000 pieces manufactures in 24 hours with a 16 unit electrical connector mould.
- Maximum mould and personnel safety.
- All types of bakalite and melamine pieces can be manufactured with this press.
TECHNICAL DATA
| Clamping Force | 250 Tons |
| Operation Pressure | 250 kg/cm2 |
| Motor Power | 2 x 5,5 kw |
| Plate Dimensions | 620 x 750 mm2 |
| Ramstroke | 400 mm |
| Max Space Between Platens | 800 mm |
| Hydraulic Ejector Force | 12 Tons |
| Hydraulic Ejector Stroke | 120 mm |
| Approximate Weight | 5500 kg |
Necessary technical modifications can be made without notice.
