Hydraulic Leather Ironing and Embossing Presses

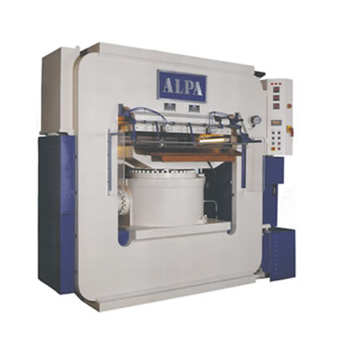

1150 Tons Leather Ironing and Embossing Press

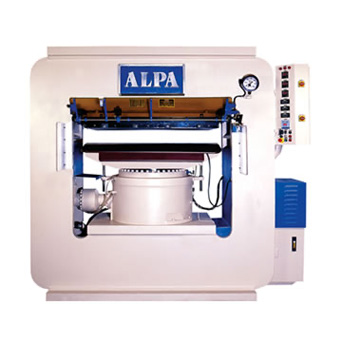

850 Tons Leather Ironing and Embossing Press

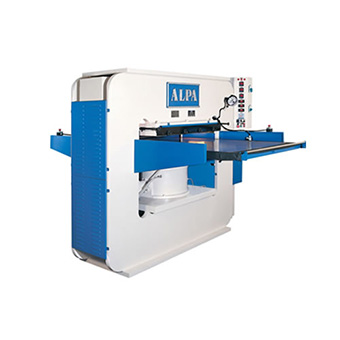

480 Tons Leather Ironing and Embossing Press with Sliding Loading System
TECHNICAL DATA
| MACHINE TYPE | ADP-350 | ADP-480 | ADP-700 | ADP-850 | ADP-1150 | |
|---|---|---|---|---|---|---|
| Pressing Force | Tons | 350 | 480 | 717 | 850 | 1150 |
| Operation Pressure | kg/cm2 | 250 | 300 | 300 | 300 | 300 |
| Plate Dimensions | mm | 1200x800 | 1200x800 1370x1000 | 1200x800 1370x1000 | 1370x1000 | 1370x1000 |
| Plate Pressure | kg/cm2 | 36 | 50 35 | 75 52 | 62 | 84 |
| Space Between Platens | mm | 130 | 130 | 130 | 140 | 140 |
| Motor Power | kw | 11 | 11 | 22 | 30 | 37 |
| Heater Power | kw | 11 | 11 13 | 11 13 | 13 | 13 |
| Total Electric Power | kw | 22 | 22 24 | 33 35 | 43 | 50 |
| Overall Size | mm3 | 2800x1400x 2300(h) | 2800x1400x2350(h) 2950x1600x2450(h) | 2800x1400x2500(h) 2950x1600x2600(h) | 2950x1600x2700(h) | 2950x1600x2800(h) |
| Approximate Weight | kg | 8000 | 10000 11000 | 13500 15000 | 18000 | 24000 |
Necessary technical modifications can be made without notice.
