Hydraulic Rubber and Tire Vulcanization Presses

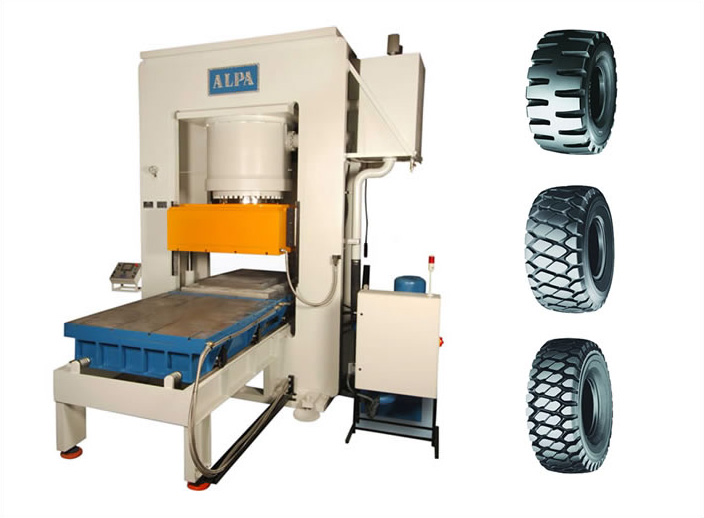

1300 Tons Double Car Rubber Press
(Platen Dimensions:1500x1800mm)

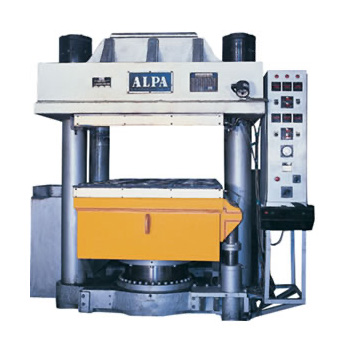

1200 Tons Rubber Plate Press
(Platen Dimensions : 2400x1200mm)

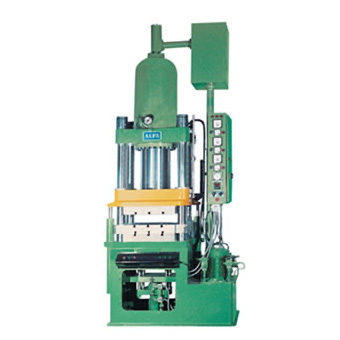

250 Tons Double Plate Rubber Press

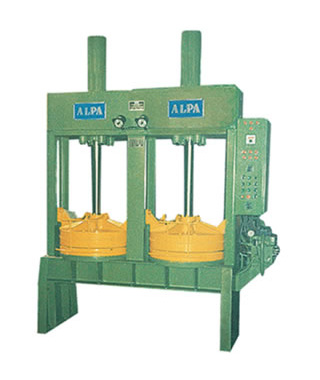

2x40 Tons Tire Vulcanization Press
TECHNICAL DATA
| MACHINE TYPE | AKP-110 | AKP-160 | AKP-250 | AKP-500 | AKP-620 | AKP-750 | |
|---|---|---|---|---|---|---|---|
| Clamping Force | Tons | 110 | 160 | 250 | 500 | 620 | 750 |
| Operation Pressure | kg/cm2 | 250 | 250 | 250 | 250 | 260 | 250 |
| Motor Power | HP | 4 | 5.5 | 7.5 | 2x7.5 | 2x7.5 | 7.5+15 |
| Plate Dimensions | mm | 470 x 460 | 530 x 580 | 620 x 750 | 725 x 870 | 800 x 980 | 900 x 1200 |
| Ramstroke | mm | 330 | 330 | 400 | 550 | 600 | 600 |
| Max Space Between Platens | mm | 580 | 580 | 650 | 1000 | 1050 | 1200 |
| Free Falling Speed | mm/sec | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Working Speed | mm/sec | 2.2 | 2.5 | 2.5 | 2.5 | 2 | 2.1 |
| Return Speed | mm/sec | 85 | 100 | 100 | 85 | 80 | 80 |
| Hydraulic Ejector Force | Tons | 12 | 12 | 12 | - | - | - |
| Hydraulic Ejector Stroke | mm | 120 | 120 | 120 | - | - | - |
| Overall Sizes | mm | 1250x580x 2450(h) | 1350x700x 2600(h) | 1500x900x 2950(h) | 2650x960x 3600(h) | 2200x1250x 4000(h) | 2400x1450x 4250(h) |
| Approximate Weight | kg | 1600 | 2500 | 4200 | 10000 | 13500 | 18000 |
Necessary technical modifications can be made without notice.
