Hydraulic Transfer Presses

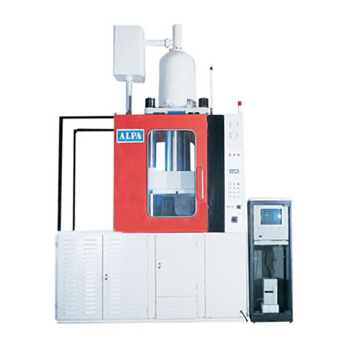

250/85 Tons Bakelite and Rubber Transfer Press
TECHNICAL DATA
| MACHINE TYPE | ATP-250/85 | |
|---|---|---|
| Clamping Force | Tons | 250 |
| Operation Pressure | kg/cm2 | 250 |
| Motor Power | HP | 15 |
| Plate Dimensions | mm | 620 x 750 |
| Ramstroke | mm | 450 |
| Max Space Between Platens | mm | 800 |
| Free Falling Speed | mm/sec | Adjustable |
| Injection Piston Power | Tons | 85 |
| Injection Piston Stroke | mm | 250 |
| Injection Speed | mm/sec | 0-12 |
| Return Speed | mm/sec | 100 |
| Overall Sizes | mm | 1850x1000x 3450(h)) |
| Approximate Weight | kg | 6800 |
Necessary technical modifications can be made without notice.
